Arm Your System

Area (A)

Thinline and Wireless Touchscreen Keypads

  1. Press CMD until ARM DISARM displays.

  2. Select ARM. The keypad displays ALL? NO YES.

  3. To arm all areas, select YES. To arm select areas, select NO. The keypad displays each area you have access to. Select YES to arm the areas and NO to leave the area disarmed.

Touchscreen Keypads

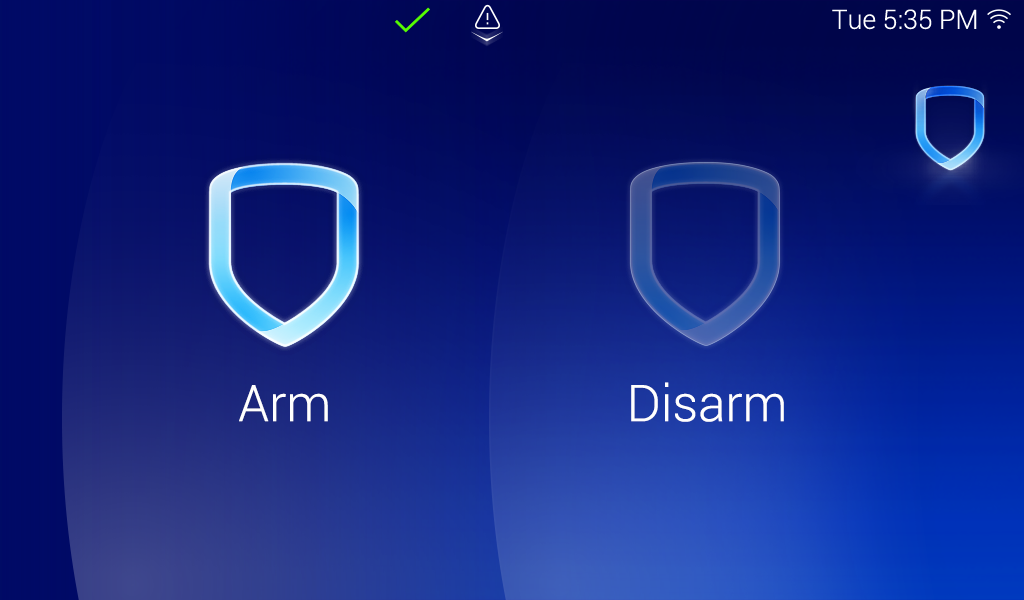

  1. Press and release the shield to open the arming options screen.

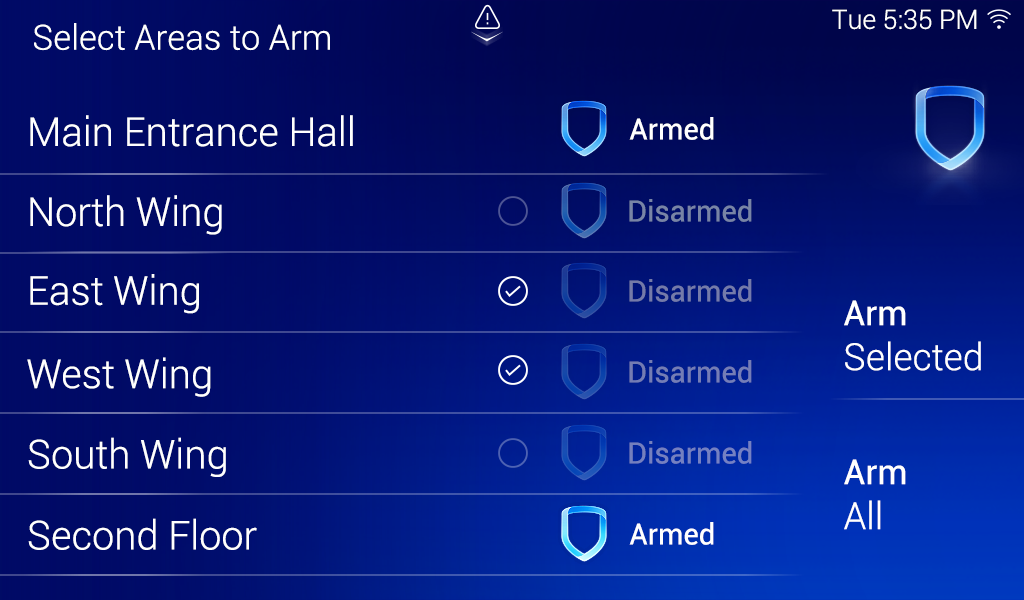

  2. Select Arm. The keypad displays a list of areas to arm.

  3. To arm all areas, select Arm All at the right of the screen. To arm select areas, tap the area name and then select Arm Selected at the right of the screen.

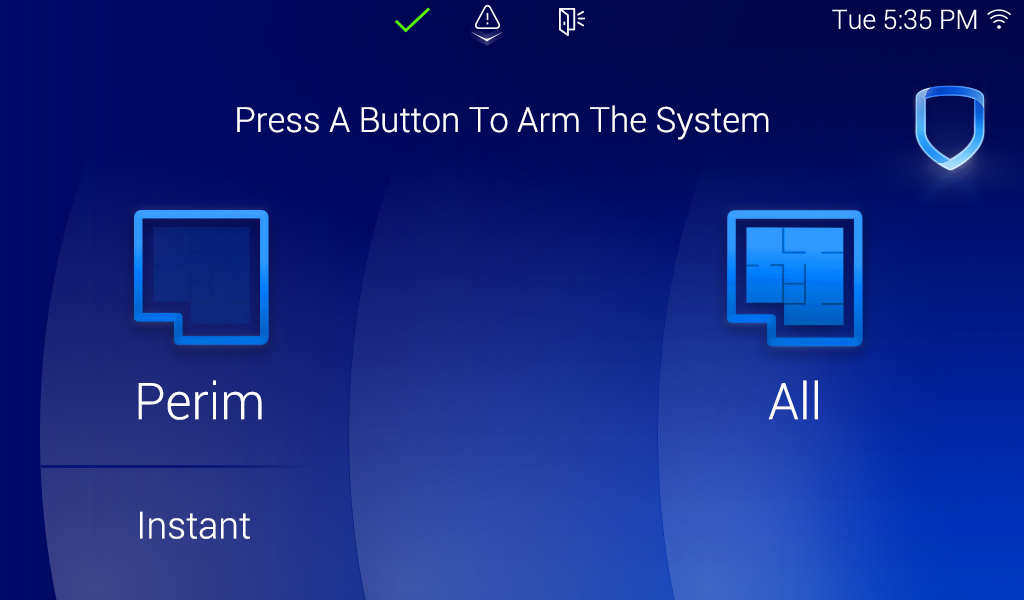

All/Perimeter (All Perim)

  1. Enter your user code and the keypad displays PERIM ALL.

  2. Select ALL to arm all areas. The keypad displays ALL SYSTEM ON. Select PERIM to arm only the perimeter. The keypad displays PERIMETER ON.

Touchscreen

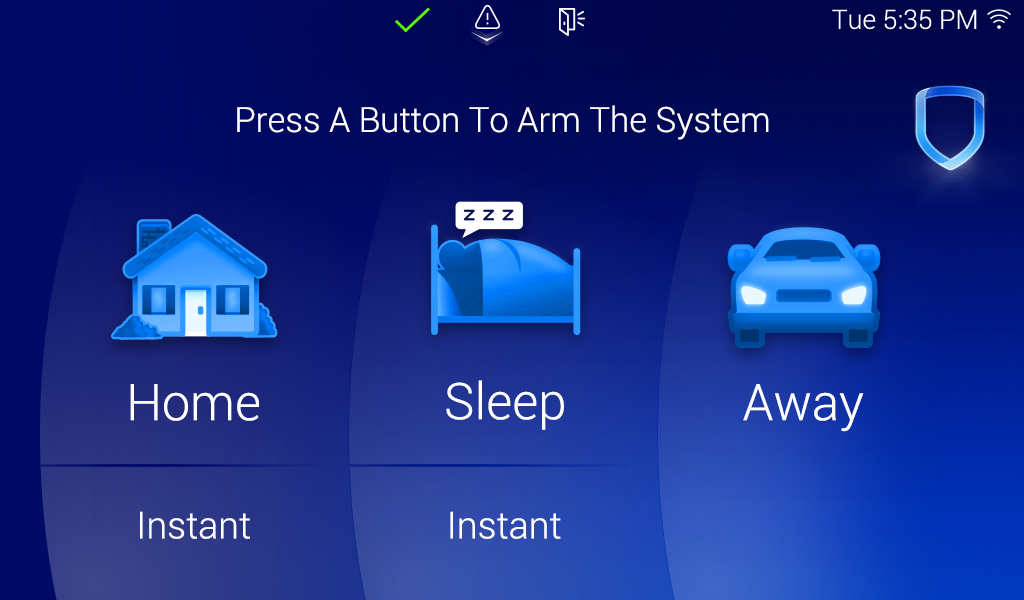

Home/Sleep/Away (H S A)

  1. Enter your user code and the keypad displays H S A.

  2. Select HOME if you’re staying inside the building, leaving the interior disarmed and arming the exterior. Select SLEEP to leave the bedroom areas disarmed, arming the interior and exterior areas. Select AWAY if no one will remain inside the building.

Touchscreen

More Arming Options

The keypads provide one-button shortcut keys. Press the key for two seconds until a tone sounds.

KEY

OPERATION

1

Arm Away for Home/Sleep/Away Systems

Arm All for All/Perimeter systems

2

Fire and Panic Sensor Reset on all systems

3

Arm Home for Home/Sleep/Away systems

5

Monitor (Chime) on all systems

6

Arm Perimeter for All/Perimeter systems

7

Arm Sleep for Home/Sleep/Away systems

8

Easy Exit for Home/Sleep/Away systems

Bypass Zones

Thinline Keypads

If a problem exists on any zone, the zone name and problem display, followed by OK BYPASS STOP.

  • Press OK to force arm the zone. The zone re-arms when it’s restored.

  • Press BYPASS to ignore the zone before arming. Panic, emergency, fire, flood detector, and temperature sensor zones cannot be bypassed.

  • Press STOP to stop your system from arming. This allows you to correct the zone, return to the keypad, and restart the arming process.

Touchscreen Keypads

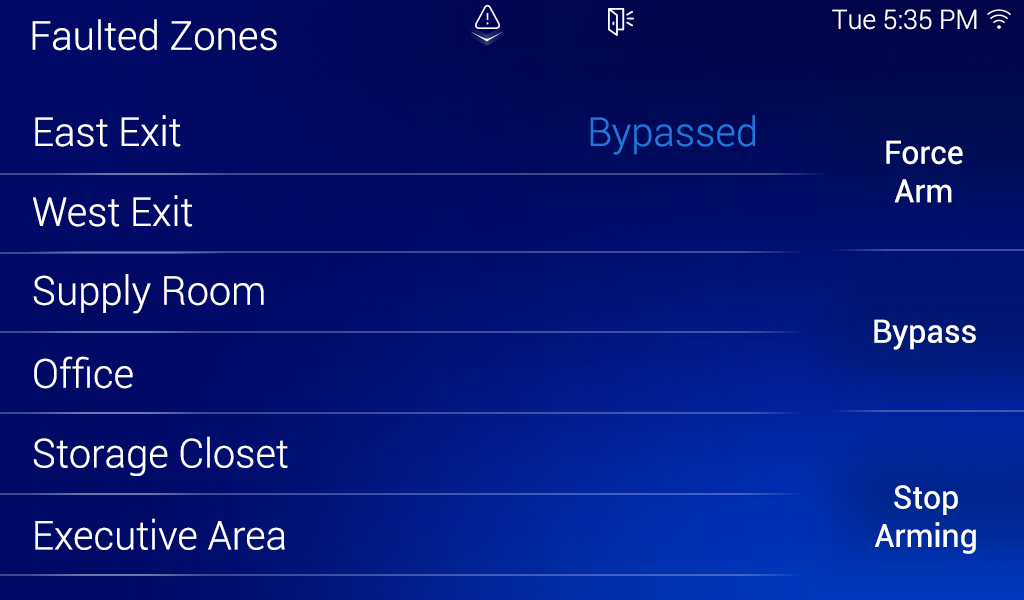

If a problem exists on any zone, the zone name and problem display. Select one of the following options that appear to the right of the screen:

  • Press Force Arm to for arm the zone. The zone re-arms when it’s restored.

  • Press Bypass to ignore the zone before arming. Panic, emergency, fire, flood detector, and temperature sensor zones cannot be bypassed.

  • Press Stop Arming to stop your system from arming. This allows you to correct the zone, return to the keypad, and restart the arming process.


Extend Schedules

When a schedule is active, you can extend the schedule to a later time. When arming your system, the keypad displays LATE or CLOSING TIME!.

  1. Press any select key or area. The keypad displays ENTER CODE:-.

  2. Enter your user code and press CMD or present your credential to a card reader.

  3. The keypad displays 2HR 4HR 6HR 8HR. Select the number of hours to extend the schedule.
